SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 600mbps
5G  Wi-Fi Transmission Rate: 2167Mbps
Antenna Type: Fixed
Application: Multi-service
Brand Name: XIAOMI
Certification: CE
Frequency: 5 GHz
Frequency Band Class: Tri-Band
Function: Firewall
High-concerned chemical: None
LAN Ports: 4
Max. LAN Data Rate: 1900Mbps
Model Name: xiaomi
Number of USB Interfaces: 1 x USB 2.0
Origin: Mainland China
Package: Yes
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
Support Mesh: Support
Supports WDS: Yes
Supports WPS: Yes
Telecomcableconnected: Yes
Type: WireLess
WAN Ports: 1 x10/100/1000Mbps
Wi-Fi Supported Frequency: 2.4G & 5G
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100/1000Mbps
Wireless Communication Standard: 802.11.be
Wireless transmission rate: 7000M
With Modem Function: No




  Note:















The instruction of this router is in China. The server in your country has not been opened yet, so you need to choose the server in China. The mihome App has your country language






























Product parameters
Product Name: Xiaomi Router 7000
Processor: Qualcomm Quad Core A73 1.5GHz
Memory: 1GB
2.4G Wi-Fi:4 × 4 (Theoretical maximum speed can reach 1147.1 Mbps)
5G Wi-Fi:4 × 4 (Theoretical maximum speed can reach 5764.8 Mbps)
Product antenna: 7 external high gain Wi Fi antennas+1 internal high gain Wi Fi antenna+NFC internal antenna
Product heat dissipation: natural heat dissipation
Machine interface: 4 × 10/100/1000/2500M adaptive WAN/LAN port 1 × USB 3.0 interface
7 LED indicator lights (SYSTEM indicator lights × 1. INTERNET indicator light × 1. Mesh port light × 4. AloT status light × 1)
system reset button/Mesh button: 1
power input interface:1
Protocol standard GB/T 9254.1-2021GB 4943.1-2022
Wireless parameters
Dual frequency mode (default) 2.4GHz and 5GHz
Wireless channel
2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12,13
5GHzChannel:36,40,44,48,52,56,60,64,149,153,157,161,165
Triple frequency mode (requires manual switching) 2.4GHz, 5.2GHz, 5.8GHz
Wireless channel
2.4GHzChannel:1,2,3,4,5,6,7,8,9,10,11,12,13
5.2GHzChannel:36,40,44,48,52,56,60,64
5.8GHz Channel:149,153,157,161,165
Software parameters
Wireless security WPA PSK/WPA2 PSK/WPA3 SAE encryption, wireless access control (black and white list), SSID hiding, anti phishing network
Management applications support web, Android, IOS

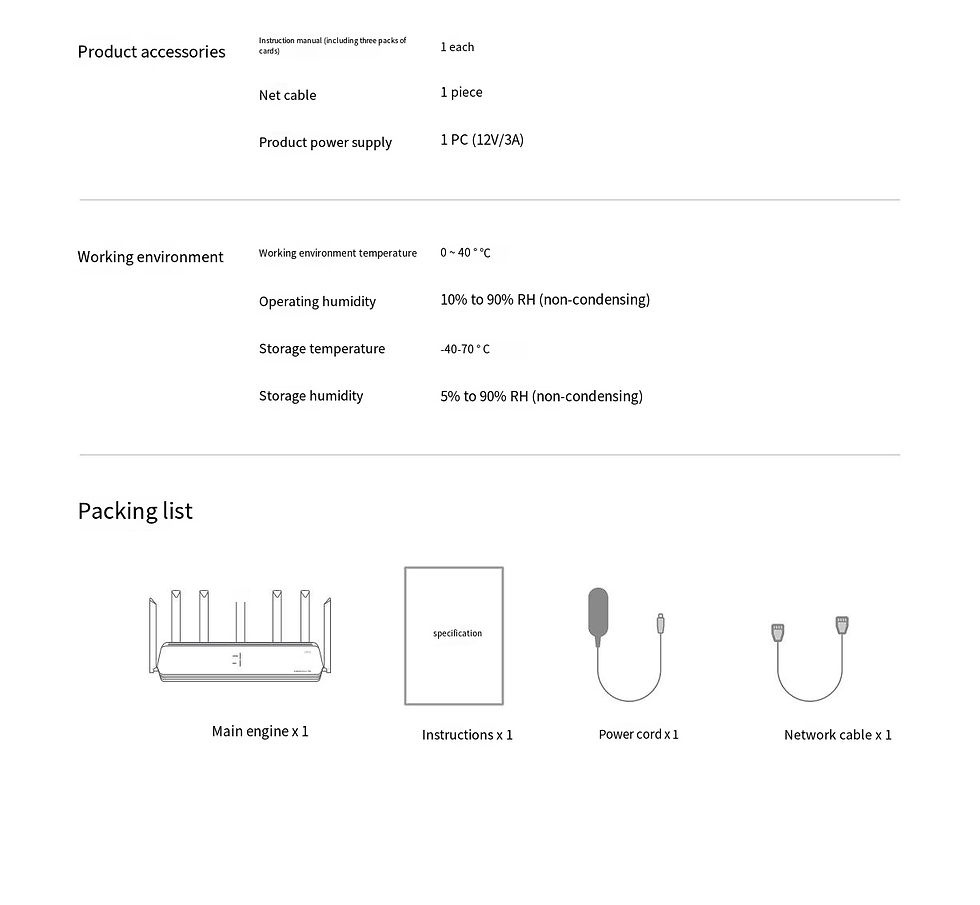

Product accessories
Instructions (including three pack card) 1 new network cable 1 product power supply (12V/3A)
work environment
Working environment temperature 0-40 ° C
Working humidity 10%~90% RH (non condensing)
Storage temperature -40~70 ° C
Storage humidity 5%~90% RH (non condensing)
